MC4 Connector. (0014/0015) pair pack of 10

MC4 Connector. (0014/0015) pair pack of 10


    This part is made up of the following items:
    1 x MC4-FEM14-10-PACK MC4 Female Connector 10 Pack
    1 x MC4-MAL15-10-PACK MC4 Male Connector 10 Pack

    Supplier Code:32.0014P0001: Female cable coupler as individual part (including insulating part)

    Supplier Code:32.0015P0001: Male cable coupler as individual part (including insulating part)

    • Snap-in lock
    • Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
    • Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
    • Tried and tested plug connectors, 14 years of experience in the field
    • Suitable for assembly with cross-sections of 4 and 6 mm²

    Rated current: 39 A (for 4 and 6mm2 cable)

    Please use correct MC4 approved tools to crimp these connectors on to bare cables.



    Weight: 0.02 kg
    Staubli
    $37.56
    MC4 Connector. (0014/0015) pair pack of 10—
    $37.56

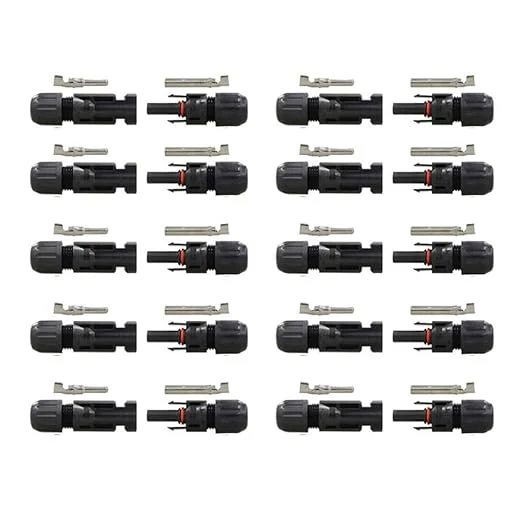

    Product image 1

    Description


      This part is made up of the following items:
      1 x MC4-FEM14-10-PACK MC4 Female Connector 10 Pack
      1 x MC4-MAL15-10-PACK MC4 Male Connector 10 Pack

      Supplier Code:32.0014P0001: Female cable coupler as individual part (including insulating part)

      Supplier Code:32.0015P0001: Male cable coupler as individual part (including insulating part)

      • Snap-in lock
      • Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
      • Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
      • Tried and tested plug connectors, 14 years of experience in the field
      • Suitable for assembly with cross-sections of 4 and 6 mm²

      Rated current: 39 A (for 4 and 6mm2 cable)

      Please use correct MC4 approved tools to crimp these connectors on to bare cables.



      Weight: 0.02 kg
      Staubli
