High PV Input Capability
Supports up to 200% oversizing to allow maximum annual generation.
🚚 Free Worldwide Shipping on All Orders!Shop Now

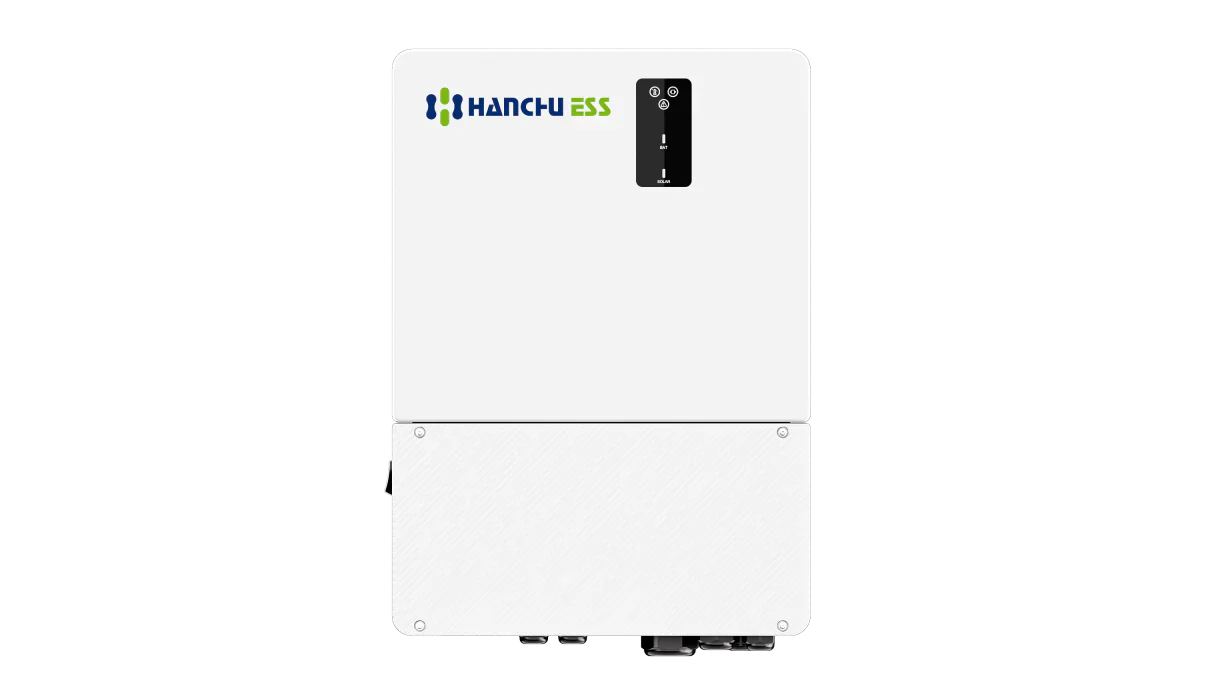

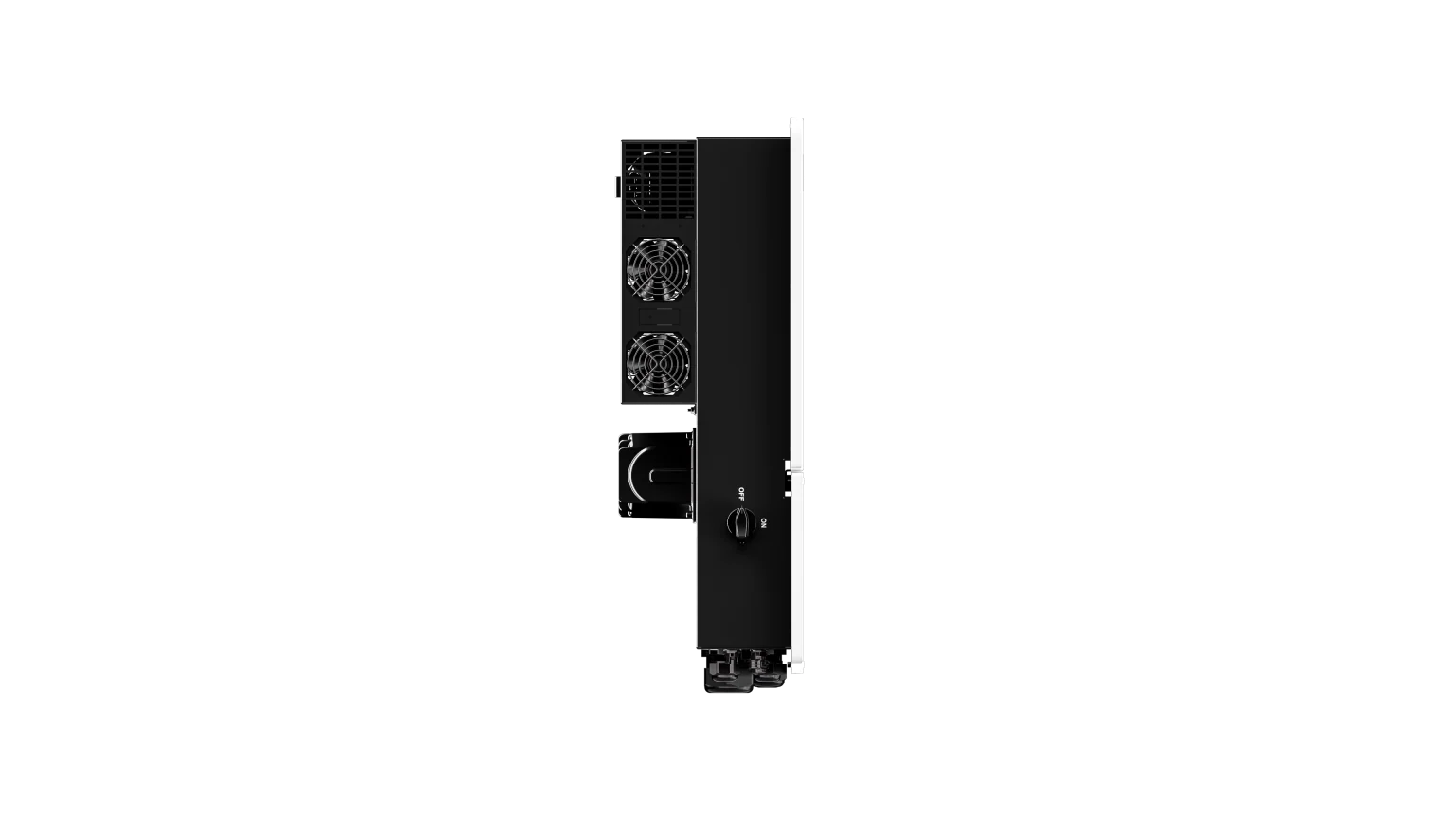

Hanchu Single Phase Hybrid Inverter 8kW
Compatible Products
Hanchu Low Voltage Battery 3.2kWh
Hanchu Low Voltage Battery 3.68kWh
Hanchu Low Voltage Battery 5.12kWh
Hanchu Low Voltage Battery 9.4kWh
Ultra Performance
Peak Efficiency
Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output.
Powerful Charge and Discharge
Handles up to 190A (8kW) charge/discharge from batteries allowing fast charging and covering larger loads.
Reliable Operation
Emergency Power Supply (EPS)
Backup power is available for critical installations that require uninterrupted operation during power outages.
Rapid Switch Time
Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages.
Shadow Scan Feature
Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade.
Smart Energy Management
Remote Management
Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.
Octopus Tariff Integration
Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.
Smart Weather Compensation
Automatically adjusts settings in response to weather conditions to maximise energy efficiency.
PV Input
- Max. PV array power : 16000Wp
- Max. input voltage : 550V
- MPPT voltage range / rated input voltage : 40V to 530V/380V
- Min. input voltage / start voltage : 40V/50V
- No. of independent MPPT trackers / strings per MPPT input : 3 | 1
- Max. input current per MPP tracker : 20A/10000W
- Max. short-circuit current per MPP tracker : 25A
Battery Input
- Nominal battery voltage : 48V/51.2V
- Battery voltage range : 40V to 60V
- Max. charging / discharge power : 8000W
- Max. charging current / Max. discharging current : 190A
- Battery type : LFP
AC Output
- AC voltage range / Nominal AC voltage : 154V to 276V / 220/230/240/ L/N
- Rated AC grid frequency : 50Hz / 60Hz
- Rated apparent power : 8000VA
- Max. apparent power : 8000VA
- Rated grid output current (@230V) : 34.8A
- Max. grid output current : 38.3A
AC Input
- Rated grid voltage : 220/230/240/ L/N
- Rated apparent power :
- Max. input apparent power from grid : 16000W
- Rated input curent from grid : 34.8A
- Max. input current from grid : 69.6A
EPS Output
- Nominal output voltage : 220/230/240/ L/N
- Nominal output frequency : 50Hz / 60Hz
- Rated apparent power : 8000VA
- Max. output apparent power : 8000VA
- Peak output apparent power : 16000VA
- Max. output current : 38.3A
- Max. switch time : <10ms
Efficiency
- MPPT efficiency : 99.90%
- Euro efficiency / Max. efficiency : 97%/97.6%
- Max. battery to load efficiency : /
General Data
- Dimensions (W*H*D) (mm) : 484mm*679*230
- Device weight : 34.5kg
- Operating temperature range : -25C ~+60C
- Noise emissions (typical) : 50 dB(A)
- Standby consumption : /
- Degree of protection (as per lEC 60529) : IP66
Features
- User interface : LED & APP
- Communication with BMS : CAN
- Communication with meter : RS485
- Communication with portal : WiFi/LAN/Bluetooth
- Other communication :
- Communication : Dongle - WiFi(2.4 GHz)/LAN (100 Mbps); Inverter -RS485(ModBus RTU)/LAN (100Mbps/Modbus TCP only)
- Integrated power control / Zero export control : Integrated/Integrated
- Certifications : EN 61000/IEC 62109/EN 50549/G99/G100
- Warranty : 12 years
